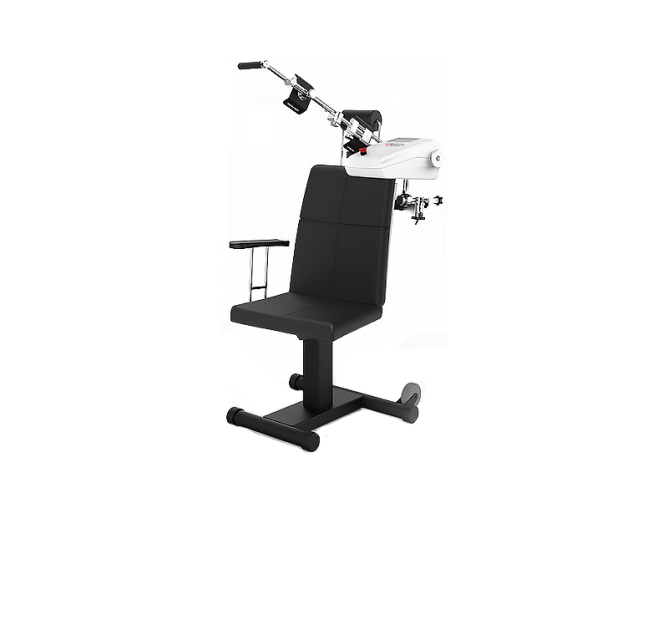

Apparatus for development of shoulder and elbow joints VZN FISIOTEСH 1300
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
VZN FISIOTEСH 1300 is a compact device designed for the development of shoulder and elbow joints. It is used for early rehabilitation of patients with joint or ligament injuries (fractures or dislocations), post-surgical interventions, total joint replacement, prevention and treatment of contractures resulting from prolonged limb immobilization, and more. It is also employed for restoring the range of motion in upper limbs in cases of neurological conditions and impaired mobility following a stroke or due to Parkinson's disease. Designed for use in specialized medical facilities and at home.
VZN FISIOTEСH 1300 provides passive mobility of the patient's shoulder and elbow joints, helping prevent complications associated with restricted mobility after surgeries, injuries, and neurological disorders.
VZN FISIOTEСH 1300 is used when a patient, for various reasons, cannot or should not receive active joint loading. For example, joint movement under load is contraindicated in cases of joint arthritis and certain types of injuries. During sessions with VZN FISIOTEСH 1300, the patient's muscles remain completely relaxed, and they should not experience pain or discomfort.
Key therapeutic effects:
- Recovery after degenerative joint conditions, such as ligament injuries, wrist arthritis, joint arthritis, post-heart attack rehabilitation, post-amputation rehabilitation, cerebral palsy, limb paralysis and paresis, Parkinson's disease, post-stroke prevention and rehabilitation;
- Pain relief (chronic pain) in shoulders and limbs, pain alleviation;
- Sports injuries, excessive strain on the forearm and upper limbs, muscle strains; restoration and improvement of physical performance;
- Helps move with the use of one's own muscles, avoids complications related to restricted mobility after surgeries, develops strength and endurance in the arm and shoulder;
- Reduces swelling, chronic tendon and joint inflammation.
Technical characteristics:
|
Nominal load on the shoulder joint: |
50 Н |
|
Nominal load on the elbow joint |
50 Н |
|
Maximum average speed |
4.5°/s |
|
Range of regulation of elbow joint activity |
0-135° |
|
The range of adjustment of the activity of the shoulder joint |
0-150° |
|
The range of adjustment of the elbow joint is |
140 mm |
|
Range of adjustment of the shoulder joint |
190 mm |
|
Training time |
0 ~ 240 min |
|
Noise |
≤60 dB |
|
Power supply |
100 - 240W, 50/60Hz |
|
Nominal load on the shoulder joint: |
50 Н |
|
Nominal load on the elbow joint |
50 Н |
|
Maximum average speed |
4.5°/s |
|
Range of regulation of elbow joint activity |
0-135° |
|
The range of adjustment of the activity of the shoulder joint |
0-150° |
|
The range of adjustment of the elbow joint is |
140 mm |
|
Range of adjustment of the shoulder joint |
190 mm |
|
Training time |
0 ~ 240 min |
|
Noise |
≤60 dB |
|
Power supply |
100 - 240W, 50/60Hz |
