The apparatus for the rehabilitation of the lower extremities VZN M-Foot
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery

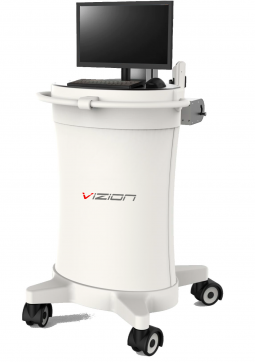

The VZN M-Foot lower limb rehabilitation device is a new type of intelligent rehabilitation apparatus capable of providing passive training in multi-joint, multi-angle, and multispeed combined modes, sequential and repeated learning. The principle is to prevent joint contractures and improve the range of joint motion.
Features:
- the device provides multi-joint, angular, speed, and multispeed combined modes for passive training, making it ideal for early bedside rehabilitation;
- electrical stimulation function: training the lower limbs using electrical stimulation to enhance the training effect;
- maximum angle delay: the stretching time at the end of passive training can be adjusted to increase the range of motion;
- bedside rehabilitation: the device has wheels, making it easy to move to the bedside and allowing patients with limitations to train their upper limbs directly at the bedside;
- quick switching between the left and right legs: press to select the direction of training for the patient's left or right leg, adjust the pedal fixator, and the patient can start training quickly;
- the length of the shin, thigh, and the height of the device are individually adjustable for each patient;
- several pre-set modes, the complexity of which is adjusted from easy to complex by medical personnel, individually for each patient;
- safety and protection: a manual emergency shutdown button designed for patient safety during training;
- spasm monitoring function: the system automatically detects spasms for patient safety during training.
Indications:
- dysfunction of the lower limbs caused by neurological injuries (stroke, traumatic brain injury, peripheral nervous system disorders, fractures, arthritis, and others);
- reduced cognitive functions and mobility, weakness of the lower limbs;
- comprehensive rehabilitation preparation during the period of lower limb function recovery.
Electrical Stimulation Parameters:
- electrical stimulation with 4 independent channel sets;
- intensity is adjustable in 60 levels.
| Pulse frequency | 5000 Hz, tolerance ±10% |
| Pulse width | 50 µs, tolerance ±10% |
| Peak pulse amplitude | 23 V, tolerance ±10% |
| Pulse shape | bidirectional rectangular wave |
| Dimensions | 800 x 700 x 1410 mm |
| Nominal voltage | 220 V, 50 Hz |
| Input power | 1800 VA |
| Condition | New |
