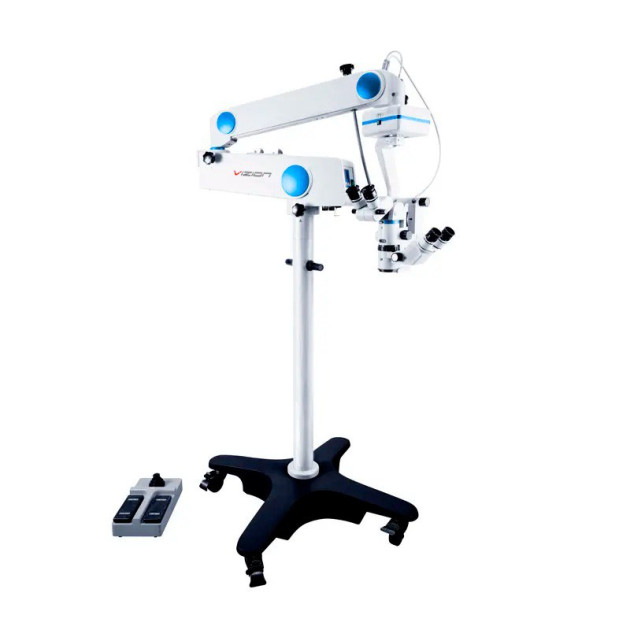

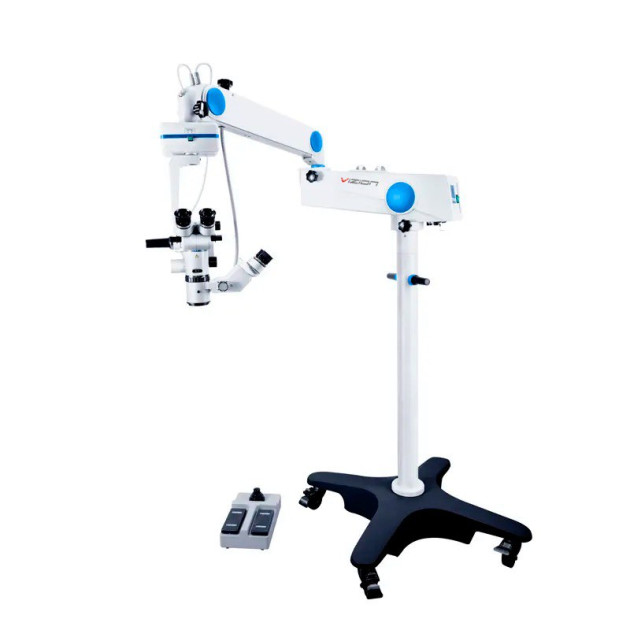

Ophthalmic operating microscope VZN-03С
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
Ophthalmic surgery requires a high degree of precision in maneuvering instruments and conducting manipulations with delicate eye tissue. The ophthalmic microscope is one of the most important tools in eye surgery, allowing ophthalmic surgeons to visualize microanatomical details and perform effective and extremely precise movements.
Features
- the main binocular tube and auxiliary tube use independent optical systems, with equal brightness and magnification;
- depth regulator for increasing the depth of field;
- dual fiber optic illumination and auxiliary oblique illumination achieve 100,000 lux to prevent surgical shadow;
- binocular tube with adjustable inclination angle from 30° to 90°;
- objective lenses from 175 to 400 mm with different characteristics to meet various needs;
- Macular protector to protect the retina.
Development of an optical system with high resolution and a new optical system using a VISION microscope type, three-dimensional sensation, large depth of field, cold light source, and dual coaxial fiber optic illumination; automatic focusing with foot control, micro-enlargement, and also has a video viewing function applied to various complex eye operations, microsurgery, and demonstrations.
CORDER camera system
provides easy access to high-definition images, HDMI and USB interfaces, SD cards for photographing or recording videos, images on HDR screen, image freezing function, image inversion, digital magnification.
BIOM KIT options for retinal surgery include an inverter, holder, and 90° and 130° lenses
| Size |
138 х 50 х 170 mm |
|
Weight |
0.5 kg |
|
Storage and operating conditions |
Temperature: from +10°C to +40°C |
|
Sterility |
Sterilize before use |
|
Materials |
Surgical grade materials |
|
Assembly lens |
Mechanical |
|
Lens positioning block |
Rotational folding |
|
Lenses |
130° |
|
90° |
|
|
Mounting kits |
Zeiss |
|
Leica |
|
|
Topcon |
|
|
Takagi |
|
|
CORDER |
Technical specifications:
| Eyepieces | 12.5x magnification, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main binocular tube | with adjustable angle of inclination 30°~90° |
| Magnification | scale 6:1, motorized magnification 4.5x~27.3x; field of view ∅44~∅7.7 mm |
| Auxiliary binocular tube | rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, diameter of light spot ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Maximum length of the bracket | 1200 mm |
| Stand | stand with a base on wheels, which have locks for fixation. With adjustment of the bracket rotation angle from 0° to 300°, and adjustment of the lens height from the floor 800 - 1250 mm |
| Foot switch | 8 functional, waterproof |
| Weight | 130 kg |
| Eyepieces | 12.5x magnification, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main binocular tube | with adjustable angle of inclination 30°~90° |
| Magnification | scale 6:1, motorized magnification 4.5x~27.3x; field of view ∅44~∅7.7 mm |
| Auxiliary binocular tube | rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, diameter of light spot ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Maximum length of the bracket | 1200 mm |
| Stand | stand with a base on wheels, which have locks for fixation. With adjustment of the bracket rotation angle from 0° to 300°, and adjustment of the lens height from the floor 800 - 1250 mm |
| Foot switch | 8 functional, waterproof |
| Weight | 130 kg |
