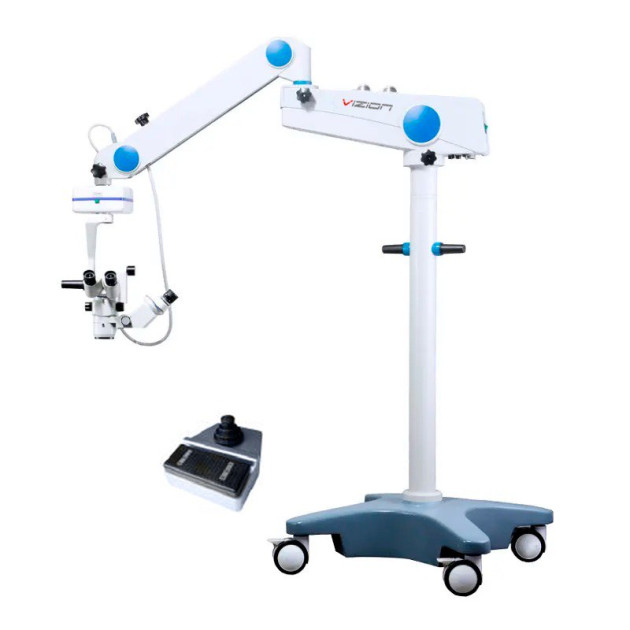

Ophthalmological operating microscope VZN-03A
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
Ophthalmic surgery requires a high degree of precision when maneuvering instruments and performing manipulations with delicate eye tissue. An ophthalmic microscope is one of the most important tools in eye surgery, allowing ophthalmic surgeons to visualize microanatomical details and perform efficient and extremely precise movements.
Features
- Main binocular tube and auxiliary tube use independent optical systems, equal brightness, equal magnification
- Depth regulator for increased depth of field
- Dual fiber optic illumination and auxiliary oblique illumination achieve 100,000 lux to prevent surgical shadow
- Binocular tube with variable tilt angle from 30° to 90°
- Objective lenses from 175 to 400 mm with different characteristics to meet various needs
- Macular protector can protect the retina
Development of an optical system with high resolution and a new optical system using VISION type microscope, three-dimensional sense, large depth of focus, cold light source and dual coaxial fiber optic illumination; automatic focusing with foot control, micro-enlargement, and also has a video viewing function applicable to various complex eye surgeries, microsurgery, and demonstrations.
CORDER camera system
free access to high-definition images, HDMI and USB interfaces, SD cards allow you to take photos or record videos, images on HDR screen, image freeze function, image inversion, digital enhancement.
BIOM KIT options for retina surgery include an inverter, holder, and 90° and 130° lenses
-
Size
138*50*170 mm
Weight
0.5 kg
Storage and operating conditions
Temperature: from +10°C to +40°C
Sterility
Sterilize before use
Materials
Surgical grade materials
Assembly lens
Mechanical
Lens positioning block
Rotary assembly
Lenses
130°
90°
Mounting kits
Zeiss
Leica
Topcon
Takagi
CORDER
Technical specifications:
| Glasses | magnification 12.5x, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main binocular tube | high brightness with a 45° tilt |
| Magnification | mechanical 3-step switch, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm |
| Auxiliary binocular tube | mechanical 3-step switch for magnification, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm. Rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, light spot diameter ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Plane movement | motorized movement in the range of ±30 mm |
| Maximum bracket length | 1100 mm |
| Stand | stand with a base on wheels, which have brakes for fixation |
| Foot switch | 6-functional, waterproof |
| Weight | 115 kg |
| Glasses | magnification 12.5x, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main binocular tube | high brightness with a 45° tilt |
| Magnification | mechanical 3-step switch, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm |
| Auxiliary binocular tube | mechanical 3-step switch for magnification, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm. Rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, light spot diameter ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Plane movement | motorized movement in the range of ±30 mm |
| Maximum bracket length | 1100 mm |
| Stand | stand with a base on wheels, which have brakes for fixation |
| Foot switch | 6-functional, waterproof |
| Weight | 115 kg |
