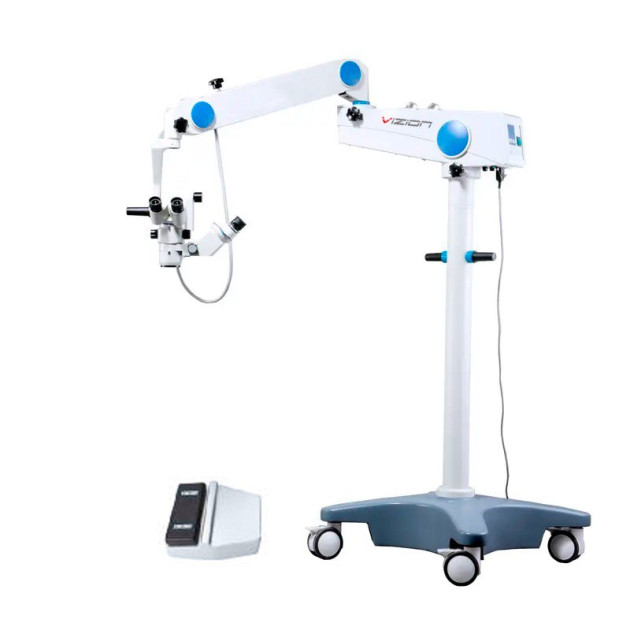

Ophthalmic operating microscope VZN-03B
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
Ophthalmic surgery requires a high degree of precision when maneuvering instruments and conducting manipulations with delicate eye tissue. The ophthalmic microscope is one of the most important tools in eye surgery, allowing ophthalmic surgeons to visualize microanatomical details and perform efficient and extremely precise movements.
Features

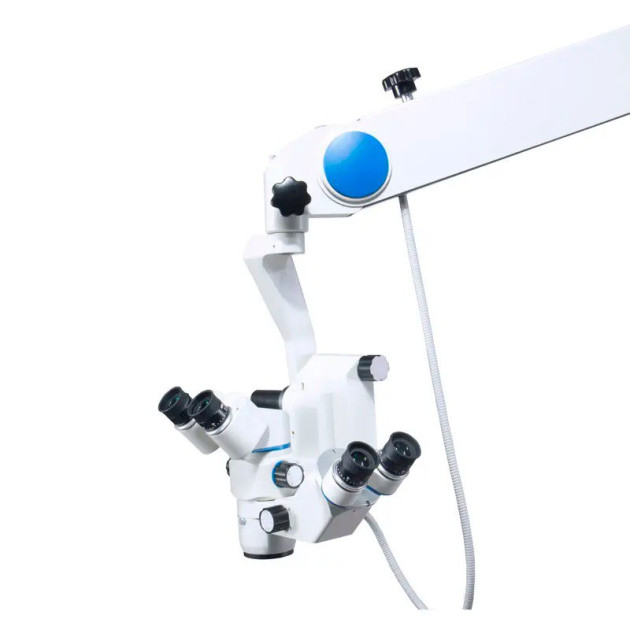

- Main binocular tube and auxiliary tube use independent optical systems, equal brightness, and equal magnification
- Depth regulator for increasing the depth of field
- Dual fiber optic illumination and auxiliary oblique illumination achieve 100,000 lux to prevent surgical shadow
- Binocular tube with adjustable inclination angle from 30° to 90°
- Objective lenses from 175 to 400 mm with different characteristics to meet various needs
- Macular protector can protect the retina
Development of a high-resolution optical system and a new optical system using a VISION microscope, three-dimensional sensation, large depth of focus, cold light source, and dual coaxial fiber optic illumination; automatic focusing with foot control, micro-magnification, and video viewing function, applicable to various complex eye operations, microsurgery, and demonstrations.
CORDER camera system
Free access to high-definition images, HDMI and USB interfaces, SD cards for photographing or recording videos, images on HDR screen, image freezing function, image inversion, digital zoom.
BIOM KIT options for retina surgery include inverter, holder, and lenses 90° and 130°
-
Size 138*50*170 mm
Weight 0.5 kg
Storage and Operating Conditions Temperature: from +10°C to +40°C
Sterility Sterilize before use
Materials Surgical grade materials
Assembled Lens Mechanical
Lens Positioning Block Rotational folding
Lenses 130°
90°
Mounting Kits Zeiss
Leica
Topcon
Takagi
CORDER
Technical specifications:
| Eyepieces | 12.5x magnification, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main Binocular Tube | high brightness with a 45° tilt |
| Magnification | mechanical 3-step switch, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm |
| Auxiliary Binocular Tube | mechanical 3-step switch of magnification, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm. Rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, diameter of light spot ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical Lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Maximum Length of Bracket | 1100 mm |
| Stand | stand with a wheeled base, which have brakes for fixation |
| Foot Switch | 2-functional, waterproof |
| Weight | 107 kg |
| Eyepieces | 12.5x magnification, interpupillary distance adjustment from 55 mm to 75 mm, diopter adjustment ±6 |
| Main Binocular Tube | high brightness with a 45° tilt |
| Magnification | mechanical 3-step switch, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm |
| Auxiliary Binocular Tube | mechanical 3-step switch of magnification, total magnification 6x, 10x, 16x; field of view ∅34 mm, ∅20 mm, ∅13 mm. Rotation 90° left and 90° right from the main tube |
| Illumination | halogen lamp, diameter of light spot ∅50 mm, illumination intensity up to 60000 lux with digital adjustment |
| Optical Lens | focal distance 200 mm (Optional 175/250/300/350/400 mm) |
|
Focusing |
motorized with zero return function and adjustment using a foot switch, range ±25 mm |
| Maximum Length of Bracket | 1100 mm |
| Stand | stand with a wheeled base, which have brakes for fixation |
| Foot Switch | 2-functional, waterproof |
| Weight | 107 kg |
