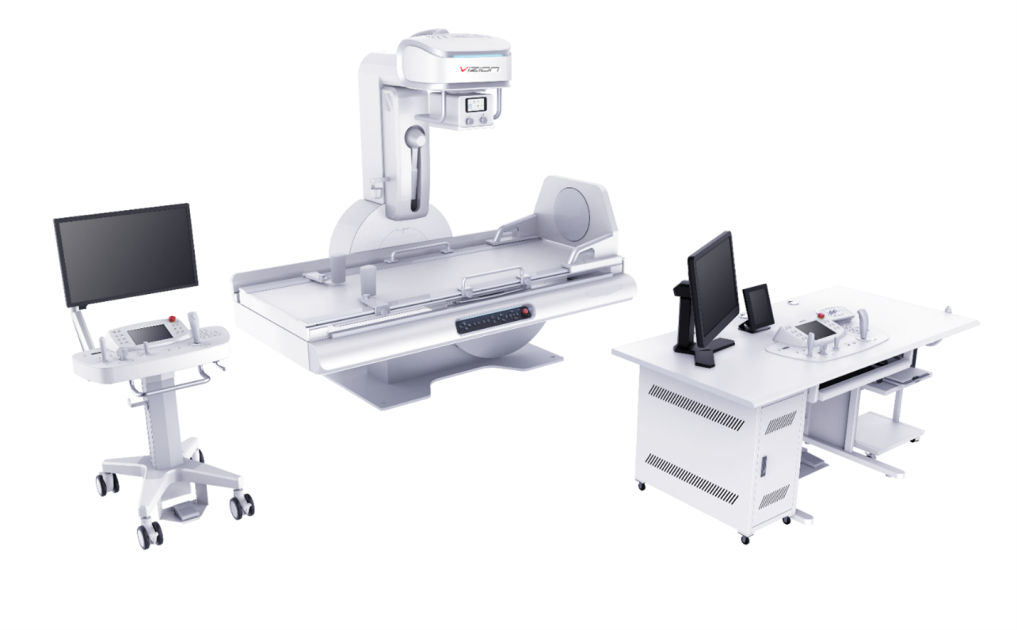

X-ray diagnostic system TITAN 3 (THREE WORKSTATION 80 kW)
_1017x630.png)
_80x50.png)
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
The TITAN 3 X-ray diagnostic system (80 kW) is designed for conducting various studies in general radiology, regardless of the patient's position (standing or lying). This system impresses with its reliability, versatility, and ease of operation, ensuring precise and safe examinations.
Features:
- the system offers advanced digital technologies for obtaining high-quality X-ray images;
- fluoroscopy allows obtaining real-time images of the patient's internal organs and structures;
- the system takes into account the need for pneumoconiosis screening, making it useful for various medical cases;
- the use of innovative modules such as iEAE (automatic enhancement), iGCR (intelligent gray shade compensation), and iTE (intelligent tissue equalization) guarantees optimal images for accurate and effective diagnostics.
The TITAN 3 series X-ray diagnostic systems are a high-tech system that combines advanced capabilities and innovative features to provide high-quality and safe X-ray diagnostics in various clinical conditions.
Technical characteristics of the detector:
| Size | 43 x 43 cm |
| Resolution | 3.5 lp/mm |
| Matrix resolution | 3072 x 3072 |
| Pixel Size | 140 µm |
Technical characteristics of the generator:
| Power | 80 kW |
| Range kV for radiography | 40 – 150 kV |
| Range kV for fluoroscopy | 40 – 125 kV |
| Range mAs for radiography | 10-1000 mA |
| Range mAs for fluoroscopy | 0.5-20 mA |
| Range mAs | 0.4-1000 mAs |
| Function AEC | Available |
Technical characteristics of the X-ray tube:
| Model | Canon |
| Anode type | Rotating |
| Focal spots | 0.6 mm and 1.2 mm |
| Anode heat capacity | 400 kHu |
| Rotation speed | 9700 rpm |
Technical characteristics of the table-stand:
| Tabletop size | 2106 x 2042 x 1636 mm |
| Table tilt angle range | -15° to +90° |
| Tabletop height | 730 mm |
| Range SID | 1150-1800 mm |
Technical characteristics of the workstation:
| Processor | i5 Intel |
| Graphics gard | 1 TB |
| Monitor | 24-inch monochrome medical LCD display |
| DICOM | DICOM 3.0 |
Technical characteristics of the power supply:
| Operating voltage | 3-phase, 380 V, 50/60 Hz |
| Size | 43 x 43 cm |
| Resolution | 3.5 lp/mm |
| Matrix resolution | 3072 x 3072 |
| Pixel Size | 140 µm |
Technical characteristics of the generator:
| Power | 80 kW |
| Range kV for radiography | 40 – 150 kV |
| Range kV for fluoroscopy | 40 – 125 kV |
| Range mAs for radiography | 10-1000 mA |
| Range mAs for fluoroscopy | 0.5-20 mA |
| Range mAs | 0.4-1000 mAs |
| Function AEC | Available |
Technical characteristics of the X-ray tube:
| Model | Canon |
| Anode type | Rotating |
| Focal spots | 0.6 mm and 1.2 mm |
| Anode heat capacity | 400 kHu |
| Rotation speed | 9700 rpm |
Technical characteristics of the table-stand:
| Tabletop size | 2106 x 2042 x 1636 mm |
| Table tilt angle range | -15° to +90° |
| Tabletop height | 730 mm |
| Range SID | 1150-1800 mm |
Technical characteristics of the workstation:
| Processor | i5 Intel |
| Graphics gard | 1 TB |
| Monitor | 24-inch monochrome medical LCD display |
| DICOM | DICOM 3.0 |
Technical characteristics of the power supply:
| Operating voltage | 3-phase, 380 V, 50/60 Hz |
| Condition | New |
Please note that the possibility of exchange or return is provided for "non-conforming quality" goods. This means that if the product breaks down during the warranty period due to manufacturing defects, you have the right to replace or return it.
Regarding goods of proper quality (those that function and have no faults), exchange or return is possible only if the product has not been used and has no visible signs of use, such as scratches, chips, or abrasions. Moreover, it is necessary to keep the complete set, integrity of the packaging and all its components, as well as the presence of factory markings and labels.
If you have any questions regarding the return of goods, please contact us in any of the following ways:
In accordance with Article 9 of the Law of Ukraine "On Consumer Rights Protection", to return or exchange goods, the following return conditions must be adhered to:
- The return of goods of proper quality can be made within two weeks from the date of receipt;
- The presence of a fiscal receipt;
- The goods are not on the list of those that are not subject to exchange and return;
- The product has not been used and has been kept in the condition in which it was purchased, except for consumables, which are not subject to exchange and return;
- Return shipping of goods is at the expense of the consumer;
- The return of goods of proper quality can be made within two weeks from the date of receipt;
- Refund of money takes place within 30 working days to the client's bank account;
- cashless payment (FOP or VAT);
- cash.
- pickup from a warehouse in Kyiv;
- delivery by Nova Poshta and other transport companies;
