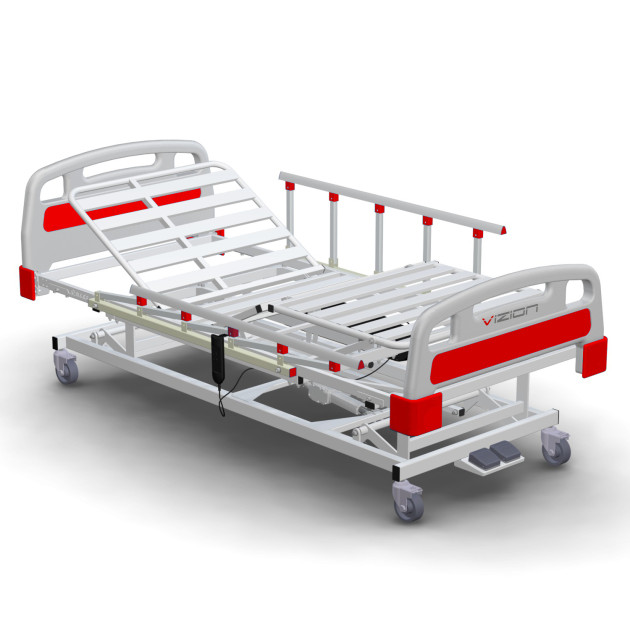

Hospital medical bed VZN-4nb-5s
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery
The VZN-4nb-5s medical functional 4-section bed with height adjustment is designed for use in medical facilities, medical wards, as well as at home. The bed is intended for accommodating patients with various diseases, as well as injured patients, and is designed taking into account the requirements for accommodating patients with severe diseases of the nervous and cardiovascular systems, and is also the optimal choice for injured patients.
The basis of the bed is a bed with the possibility of height adjustment, made in the form of a frame structure with one static section and functional head, thigh, lift and lower sections, the adjustment of which is carried out using handles located at the rear of the bed. The height adjustment range of the bed is carried out by an electric actuator in combination with a foot control drive. This feature of the bed allows patients to be transferred to stretchers, or other surfaces for further transportation, etc.
The bed frame is made of metal slats. The slatted base provides maximum load capacity of the structure. Removable ABS plastic side rails are attached to the frame. Mounts for installing an IV pole for long infusions are made on the side parts of the frame. Hooks are attached to the bottom of the central part of the frame, which allow hanging urinary receivers.
The bed is a collapsible design. Manufacturing of a fully welded structure is possible. All metal parts of the bed are covered with powder-polymer paint, resistant to the action of disinfectants. All parts subject to painting undergo chemical preparation (phosphating) before coating, which makes the product coating more resistant to corrosion and durable in operation. The structure can be painted with paint of any color by agreement with the customer. All materials used in the production of the product are properly certified for use in medical practice. The bed is mounted on four self-orienting wheels, two of which are equipped with brakes, with a diameter of 75 mm with a gray tire that does not leave marks. Additionally, the bed can be equipped with: a mattress, a support holder, an IV pole, a bedside table, a vessel stand. The bed is supplied unassembled: bed, set of legs with wheels, side rails with quick-release mechanism, side guards.
Technical specifications:
|
Overall dimensions (height/width/depth) |
840 x 920 x 2100 mm |
|
Dimensions of the bed (mattress frame) (length/width) |
2000 x 900 mm |
|
Bed height from the floor (without mattress) |
450 mm |
|
Head section angle adjustment range |
from 0° to 70° |
|
Thigh section angle adjustment range |
from 0° to 45° |
|
Bed slats |
metal slats |
|
Maximum load |
180 kg |
|
Weight |
50 kg |
