Advanced anesthesia and respiratory machine Astra 3i OES Medical Ltd (Oxford, UK)
- The cost of equipment includes commissioning and personnel training.
- The warranty is 24 months
-
Description
-
Specifications
-
Exchange and return
-
Payment and delivery

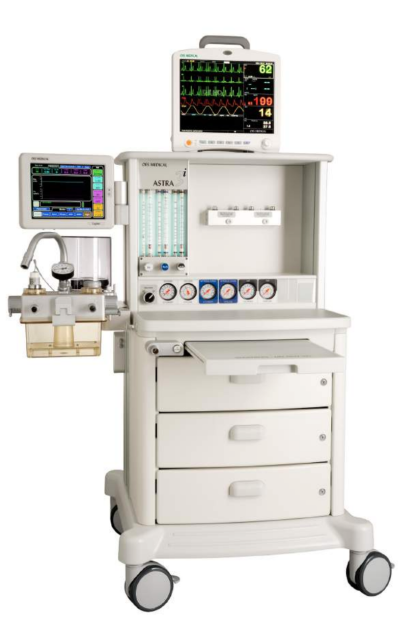

Astra 3i Advanced by OES Medical is a multifunctional anesthesiology workstation with a selection of technical features and options to meet the requirements of modern operating rooms. The intuitive user interface, combined with various functions and numerous options, gives Astra 3i the advantages of an integrated system with the flexibility of modular construction.
Patient groups: children, adults
Ventilation modes:
- controlled volume ventilation;
- controlled pressure ventilation;
- SIMV - synchronized intermittent ventilation;
- SMMV - synchronized mandatorily breathless minute;
- pressure-controlled ventilation with volume control;
- PSV - pressure support ventilation;
- spontaneous ventilation;
- manual ventilation.
Ventilation parameters:
- respiratory rate 4-100 breaths/min;
- tidal volume 10-1500 mL;
- inspiratory pressure 10 – 70 cm H2O;
- PEEP 4 -20 cm H2O.
Respiratory monitoring: oxygen concentration, exhaled tidal volume, minute exhaled volume, peak pressure, mean pressure, PEEP pressure, dynamic compliance.
General characteristics:
- three types of gases (O2/N2O/air);
- Drager multigas module (side stream) with paramagnetic oxygen analyzer, automatic detection of anesthetic gas;
- aspiration module;
- additional color TFT touchscreen (3.5 inches) electronic flowmeter.
Device Configuration:
- AGSS receiving unit;
- reusable silicone adult breathing circuit, 1.5 m long with a 2 L silicone bag;
- reusable silicone pediatric/infant breathing circuit, 1.5 m long with a 0.5 L silicone bag;
- isoflurane vaporizer with Key Filler mechanism;
- sevoflurane vaporizer with Key Filler mechanism;
- Isoflurane Key Filler Adapter;
- Sevoflurane Key Filler Adapter;
- oxygen NIST - 4-meter hose;
- N2O NIST - 4-meter hose;
- air NIST - 4-meter hose.
Technical Specifications
| Display | Touchscreen control with a large color TFT screen (15-inch diagonal) |
| Battery operation time of | 5 hours |
| Gases types | Three types of gases (O2/N2O/air) |
| Analyzer for oxygen | Drager multi-gas module (sidestream) with paramagnetic analyzer for oxygen, automatic identification of anesthetic gas |
| Aspiration module | Yes |
| Additional touchscreen | Additional color TFT touchscreen (3.5 inches) for electronic flowmeter |
| Display | Touchscreen control with a large color TFT screen (15-inch diagonal) |
| Battery operation time of | 5 hours |
| Gases types | Three types of gases (O2/N2O/air) |
| Analyzer for oxygen | Drager multi-gas module (sidestream) with paramagnetic analyzer for oxygen, automatic identification of anesthetic gas |
| Aspiration module | Yes |
| Additional touchscreen | Additional color TFT touchscreen (3.5 inches) for electronic flowmeter |
| Condition | New |
